Most surgeons obsess over punch diameter. They debate 0.8mm versus 0.9mm versus 1.0mm like it’s the key to everything.
Well, it’s not.
Depth control is the variable that actually separates elite transection rates from average ones. It’s what preserves stem cells, enables donor regeneration, and determines whether your patient heals in days or weeks.
Yet it’s rarely discussed.
This article explains why minimal depth extraction matters, the anatomy that makes it work, and how to implement it in your practice.
What Will I Learn?
Minimal depth FUE limits punch penetration to just below the arrector pili muscle attachment. No deeper.
Traditional FUE punches often go 4 to 6mm deep. Minimal depth extraction typically stays between 2 and 4mm, depending on the patient’s anatomy.
The difference sounds small. The clinical impact is significant.
Minimal depth FUE limits punch penetration to just below the arrector pili muscle attachment. No deeper.
Traditional FUE punches often go 4 to 6mm deep. Minimal depth extraction typically stays between 2 and 4mm, depending on the patient’s anatomy.
The difference sounds small. The clinical impact is significant.
Every hair follicle has two critical attachments that must be cut during extraction: the sebaceous gland and the arrector pili muscle.
The sebaceous gland supplies oil to the skin. It sits at a depth of 2 to 4mm in most patients, rarely exceeding 5mm.
The arrector pili muscle is a smooth muscle that connects the follicle to the connective tissue of the dermis. It attaches to the follicular bulge region, which houses the stem cell niche.
Once both attachments are severed, the follicle releases. The bulb at the base will follow without requiring the punch to reach it.
Going deeper than necessary introduces risk without benefit.
There is no universal “correct” depth. The arrector pili attachment varies from person to person. It even varies from one region of the donor area to another in the same patient.
Thick hair tends to have larger sebaceous glands and deeper attachments. Thin hair often has smaller glands and shallower attachments. But exceptions exist.
This is why proper extraction starts with a dermal depth analysis. You assess the depth of the arrector pili muscle before setting your punch. Then you adjust throughout the procedure as you move across different donor zones.
One size does not fit all. One depth does not fit all, either.
Limiting penetration depth produces measurable improvements across multiple outcomes.
Key benefits include:
Each of these benefits is explored in detail below.
Transection happens when the punch cuts through the follicle instead of around it. Deeper punches have more opportunity to veer off course and damage the graft.
Minimal depth extraction reduces this window. Less travel means less chance for error.
Physicians using the PCID with proper depth control report transection rates below 3%. Some consistently achieve 1 to 2%. Compare this to the 5 to 10% range common with less controlled methods.
The follicular bulge contains the stem cells responsible for hair regeneration. The arrector pili muscle attaches directly to this region.
Deep extraction removes everything, including the stem cells. Minimal depth extraction leaves stem cell remnants in the donor area.
This matters because those remnants can potentially regenerate new follicles when combined with regenerative therapies like ACell or PRP. Clinical observations show 30 to 40% donor follicle regeneration in patients treated with minimal depth extraction plus ACell.
Shallower wounds heal faster. There’s less tissue trauma, less inflammation, and smaller puncture sites.
Patients experience improved comfort during recovery. The donor area looks better sooner. And the risk of visible “mothball” scarring decreases significantly.
Grafts extracted at minimal depth suffer less mechanical stress. They spend less time being manipulated by the punch. The cellular integrity of the outer root sheath, inner root sheath, and surrounding tissue remains more intact.
This translates to higher graft survival rates post-implantation. Clinics using CIT methodology report 97%+ graft survival consistently.
Not all extraction devices offer true depth control. Some have depth collars. Some have no depth limiting mechanism at all.
Effective minimal depth extraction requires instruments designed specifically for this purpose.
FUE has always been time-consuming and physically demanding. The PCID changes that.
The Powered Cole Isolation Device is the only programmable follicular dissection device designed for both speed and graft preservation. It performs rotation, oscillation, or rotoscillation about a single axis, making circular incisions at precisely controlled depths.
The numbers speak for themselves. In studies looking at over 85,742 grafts, the average transection rate using the PCID was 3.41%. Dr. Cole has extracted over 2,000 grafts per hour with this device, without compromising graft quality for speed.
Beyond precision, the PCID reduces surgeon fatigue and repetitive stress injuries associated with manual extraction. That matters during mega-sessions.
The PCID 2 represents the next evolution in programmable FUE extraction. Several key improvements address the practical demands of high-volume practices.
For surgeons who prefer manual extraction, the CIT Manual Punch Handle accommodates punches from 0.85mm to 1.25mm and uses the minimal depth principle.
Manual CIT yields the lowest transection rates of any manual FUE method. It requires more skill and experience than motorized extraction but offers unmatched tactile feedback.
Minimal depth extraction demands exceptionally sharp punches. Dull punches require more force, which pushes the instrument deeper than intended.
Sharp punches reduce axial and tangential force requirements. They glide through tissue rather than pushing through it.
Design features that support minimal depth include thin walls to reduce friction, recessed internal diameters to minimize tissue torsion, and contoured surfaces that decrease the contact area at any given moment.
Transitioning to minimal depth extraction requires changes in both technique and mindset.
Before beginning any extraction, assess the depth of the arrector pili muscle in your patient’s donor area. This becomes second nature with practice.
Initial test extractions in different zones will reveal depth variations. Set your punch accordingly and adjust as you move across the scalp.
Track your transection rates during the procedure, not just after. Applications like the Graft Tabulator allow physicians to monitor follicle transection rates as they work.
When transection rates climb, adjust your depth, angle, or technique immediately. Waiting until the procedure ends to evaluate means missing the opportunity to correct course.
Minimal depth extraction is not a fixed protocol. It’s a principle that adapts to individual anatomy.
Hair caliber, skin elasticity, follicle angle, and sebaceous gland size all influence optimal depth. The best outcomes come from surgeons who adjust continuously rather than applying a one-size-fits-all approach.
Several errors undermine the benefits of minimal depth extraction.
Minimal depth does not mean minimal enough to release the follicle. If you don’t cut through both the sebaceous gland and arrector pili attachment, the graft won’t release cleanly.
Forced extraction of incompletely dissected grafts damages the follicle. You need sufficient depth to sever the attachments. Just not more than that.
Setting one depth at the beginning and never adjusting is a recipe for inconsistent results. The temporal region differs from the occipital region. The nape differs from the mid-scalp.
Reassess depth as you move. Your patient’s anatomy will tell you when adjustments are needed.
Punches dull over time. A sharp punch that becomes dull mid-procedure will require more force, pushing you deeper than your set parameters.
Change punches regularly. The cost of a new punch is insignificant compared to the cost of damaged grafts.
Hair restoration surgery has evolved dramatically. Patients expect natural results, minimal scarring, and quick recovery.
Minimal depth extraction addresses all three.
It produces higher quality grafts that survive better post-transplantation. It leaves stem cells behind for potential regeneration. It creates smaller wounds that heal faster and scar less.
The industry has spent years debating punch sizes in fractions of millimeters. The real differentiator, the one that actually changes patient outcomes, is how deep that punch goes.
Depth control is the overlooked variable. It’s time to give it the attention it deserves.
There is no single optimal depth. The correct depth is just below the arrector pili muscle attachment, which typically falls between 2 and 4mm depending on patient anatomy. Dermal depth analysis before extraction determines the appropriate setting for each patient and donor zone.
Minimal depth extraction reduces the distance the punch travels through tissue, decreasing opportunities for the punch to veer off course. Surgeons using proper depth control consistently report transection rates below 3%, with some achieving 1 to 2%.
Minimal depth extraction leaves stem cell remnants in the donor area. When combined with regenerative therapies such as ACell or PRP, these remnants can potentially regenerate new follicles. Clinical observations show 30 to 40% donor follicle regeneration in treated patients.
Effective minimal depth extraction requires instruments with precise depth control. The PCID and PCID 2 offer manufactured depth stops, programmable settings, and dual-handpiece operation. The CIT Manual Punch Handle enables manual minimal depth extraction. Both require sharp, high-quality punches with thin walls and reduced friction designs.
Physicians training on the PCID typically see significant improvement within days. Documented cases show transection rates dropping from 15% to below 5% after three days of hands-on training. Mastery develops with continued practice and attention to patient-specific anatomy.

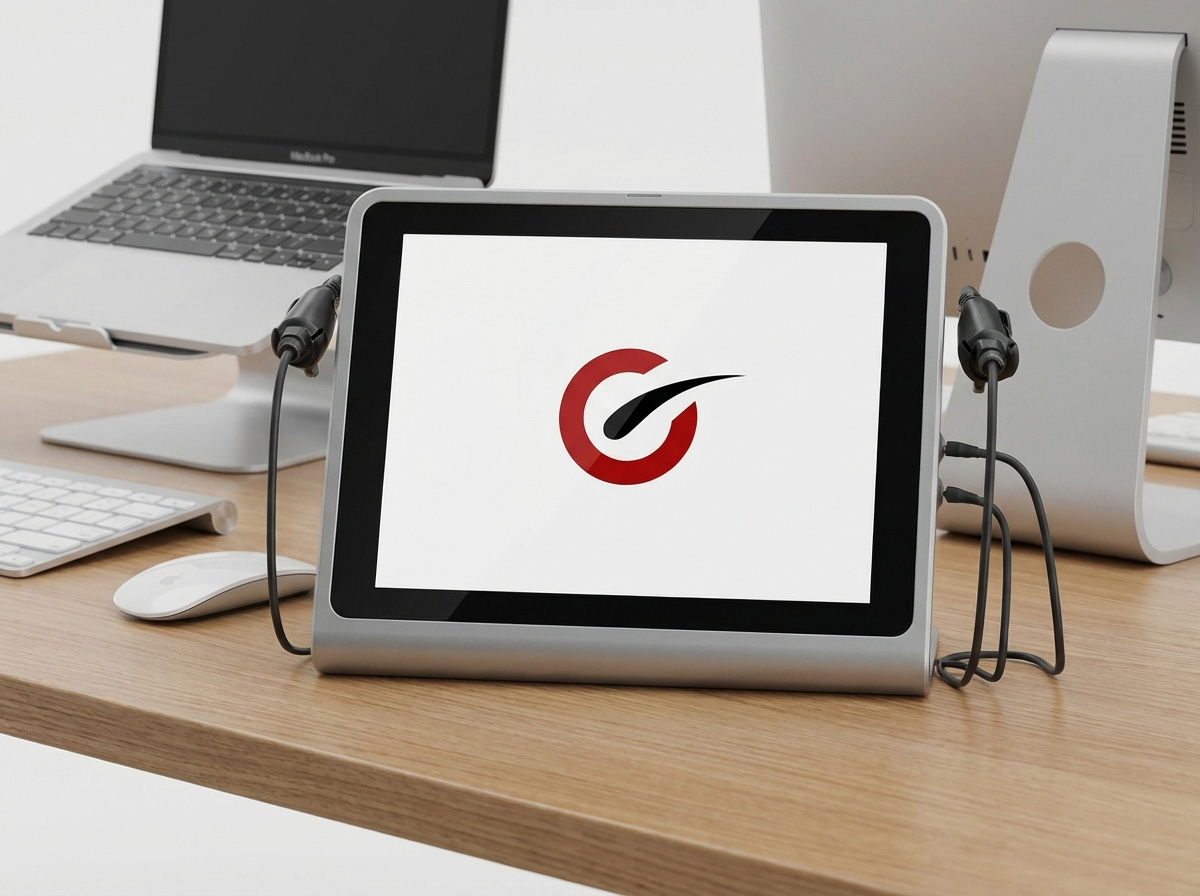

The PCID 2 combines the control box and touch screen into one integrated unit. It features a built-in stand with removable handpiece holders, wireless Bluetooth foot pedal control, and the ability to run two handpieces simultaneously under different settings. The device ships globally with a one-year warranty.
1. Cole, J.P. “A method to control the depth of punch insertion improves the quality of grafts harvested during follicular unit extraction.” Hair Transplant Forum International.
2. Cole, J.P. “Sharp Motorized FUE Dissection.” ResearchGate, 2017.
3. Jimenez F, Izeta A, Poblet E. “Morphometric analysis of human scalp hair follicle: practical implications for the hair transplant surgeon.” Dermatologic Surgery, 2011.
4. US Patent US20150289625A1. “Method and apparatus for extraction of follicular units.” USPTO.
5. “Overview of Follicular Extraction.” PMC/NIH National Library of Medicine, 2021.
6. Cole Instruments. “PCID 2 – Powered Cole Isolation Device.” Product Documentation, 2025.
